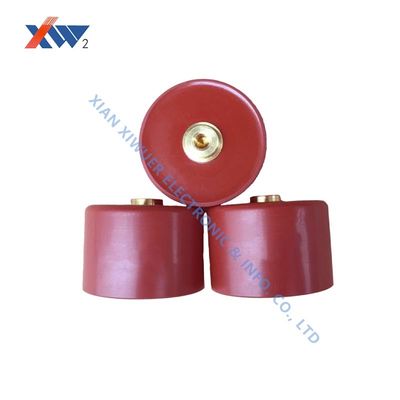

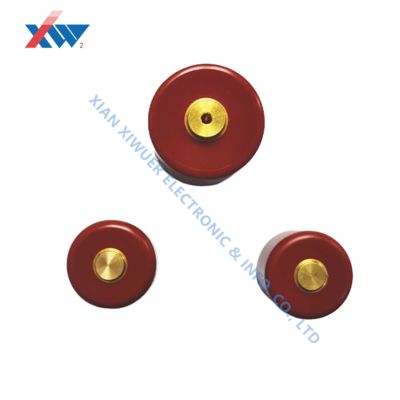

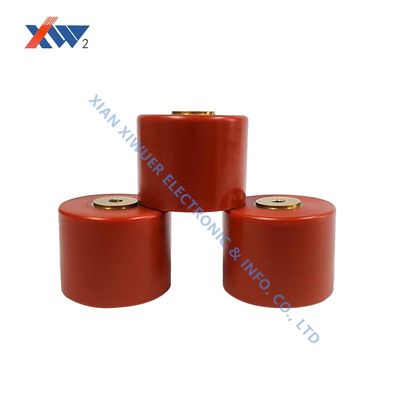

High Voltage Doorknob Capacitor for Non-Destructive Testing with Extreme Space Requirements and Functional Integration

  • High Voltage Doorknob Capacitor for Non-Destructive Testing with Extreme Space Requirements and Functional Integration
  • High Voltage Doorknob Capacitor for Non-Destructive Testing with Extreme Space Requirements and Functional Integration
  • High Voltage Doorknob Capacitor for Non-Destructive Testing with Extreme Space Requirements and Functional Integration
محل منبع شیان، شانکسی چین
نام تجاری XIWUER
گواهی ISO9001,ISO14001,OHSAS18001
شماره مدل CT8-1-30KV-12000PF
مقدار حداقل تعداد سفارش 1 قطعه
قیمت قابل مذاکره
جزئیات بسته بندی کارتن
زمان تحویل 10-15 روز
شرایط پرداخت L/C ، T/T
قابلیت ارائه 4000000 عدد در سال

برای نمونه و کوپن رایگان با من تماس بگیرید.

واتس اپ:0086 18588475571

وی چت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.

x
جزئیات محصول
برجسته کردن

Non-Destructive Testing High Voltage Doorknob Capacitor,Extreme Space Requirements HV Ceramic Capacitor,Functional Integration High Voltage Doorhandle Capacitor

,

Extreme Space Requirements HV Ceramic Capacitor

,

Functional Integration High Voltage Doorhandle Capacitor
پیام بگذارید
توضیحات محصول
High-Voltage Doorhandle Capacitors for Nondestructive Testing Equipment
Technical Specifications
No. Specification Dissipation Withstanding Voltage Insulation Resistance Dimensions (mm)
1 20kV-2000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:19 | L:23 | D:12 | M:5
2 20kV-10000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:65 | H:15 | L:19 | D:12 | M:5
3 20kV-18000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:17 | L:25 | D:12 | M:5
4 30kV-1000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:24 | L:32 | D:12 | M:4
5 30kV-2700pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:60 | H:20 | L:28 | D:12 | M:4
6 30kV-12000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:19 | L:23 | D:12 | M:5
7 40kV-150pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:74 | H:18 | L:26 | D:12 | M:5
8 40kV-500pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:28 | H:33 | L:41 | D:8 | M:4
9 40kV-7500pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:24 | L:29 | D:12 | M:6
10 40kV-10000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:22 | L:26 | D:16 | M:5
Total Cost of Ownership Advantage
In industrial equipment markets, purchasing decisions now consider total cost of ownership rather than just initial costs. For high-value nondestructive testing equipment, our high-voltage doorhandle capacitors deliver value far beyond unit price.
Cost Comparison
Visible Costs (Initial):
  • Capacitor unit price
Invisible Costs (Long-Term Risk):
  • Equipment downtime losses due to early capacitor failure
  • Labor and travel costs for on-site repairs
  • Brand reputation loss and potential compensation due to inaccurate test results
  • Additional electricity costs due to inefficient capacitors
Strategic Value Proposition
Our high-quality capacitors represent a strategic investment in your equipment's long-term profitability and brand reputation:
  • Maximized Equipment Uptime: Extremely low failure rates increase equipment availability and strengthen your reputation
  • Consistent Test Accuracy: Excellent long-term stability ensures performance throughout the equipment lifecycle
  • Energy Efficiency: Low dissipation factor reduces energy waste, supporting sustainability goals
  • Supply Chain Simplicity: Stable product quality reduces inspection needs and production risks
Case Study: Aerospace NDT Equipment Manufacturer
A leading manufacturer implemented our high-voltage doorhandle capacitors in their composite material testing equipment, achieving:
  • 70% reduction in three-year equipment return rate
  • Industry benchmark test result reproducibility recognized by major aircraft manufacturers
  • Over 40% reduction in lifecycle maintenance costs
Despite a 15% higher initial cost per capacitor, the total cost savings and performance benefits were substantial.
We provide more than capacitors - we deliver reliability guarantees that differentiate your equipment in the market and build long-term competitive advantage.
