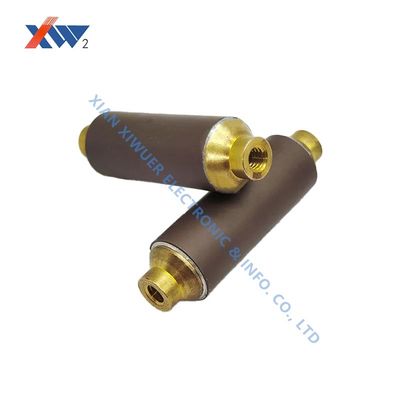

24kV 80pF High Voltage Ceramic Capacitor with 2000VAC Dielectric Strength for Live Line Indicators
جزئیات محصول
| رتبه بندی ولتاژ | 24000 ولت | دمای ذخیره سازی | -25 درجه سانتی گراد تا +85 درجه سانتی گراد |
|---|---|---|---|
| رنگ | قهوه ای | مقاومت عایق | 3000MΩ |
| نام تجاری | XIWUER | قدرت دی الکتریک | 2000VAC |
| جنس سرامیک | (Y5T)2D4 |
توضیحات محصول
24kV 80pF Live Line Capacitor ±20% Used In Circuits To Indicate The Presence Of Voltage
Product Overview
High Voltage Ceramic Capacitor is an essential component of electric circuits, used to store electric energy and indicate the presence of voltage. This RoHS compliant capacitor features a dielectric strength of 2000VAC and radial package type. Available in brown and red colors, this 24KV 80PF Live Line Capacitor is specifically designed for high voltage circuits and indicator applications, capable of storing and releasing energy without significant loss.
Key Features
- Product Name: High Voltage Ceramic Capacitor
- Dielectric Strength: 2000VAC
- Color Options: Brown, Red
- Typical Dissipation Factor: @ 1 KHz 20° C LV ≦ 0.5% ≦2.0%
- Ceramic Material: (Y5T)2D4
- Live Line Capacitor 24KV 80PF for indicators
- Live display capacitor mandrel
Technical Specifications
| Parameter | Details |
|---|---|
| Storage Temperature | -25°C To +85°C |
| Tolerance | ±20％ |
| Lead Spacing | 5mm |
| Package Type | Radial |
| Capacitance | 80pF |
| Typical Dissipation Factor | @ 1 KHz 20° C LV ≦ 0.5% ≦2.0% |
| Color | Brown |
| Size | 13.2mm X 26.5mm |
| Voltage Rating | 24000V |
| Ceramic Material | (Y5T)2D4 |
| Application | High Voltage Ceramic Capacitor for indicators and charged displays, used in circuits to indicate the presence of voltage |
Applications
XIWUER High Voltage Ceramic Capacitor CT8-2 is a reliable and economical choice for various applications. Manufactured from Y5T material, it features 3000MΩ insulation resistance, 5mm lead spacing, 1000V voltage rating, and ±20％ tolerance. This capacitor is specifically designed for Live Line Capacitor 24KV applications for indicators and live display capacitor mandrels.
With ISO9001, ISO14001, ISO45001, and CCC certifications, this product ensures safety and reliability. It offers competitive pricing with 5-8 days delivery time and carton packaging.
Customization & Ordering Details
- Brand Name: XIWUER
- Model Number: CT8-2-24KV-80pF
- Place of Origin: XIAN, CHINA
- Certification: ISO9001, ISO14001, ISO45001, CCC
- Minimum Order Quantity: 1 unit
- Price: Negotiable
- Packaging Details: Carton
- Delivery Time: 5-8 days
- Payment Terms: L/C, T/T
- Supply Ability: 4,000,000 units per year
Frequently Asked Questions
What is the brand name of the High Voltage Ceramic Capacitor?
The brand name is XIWUER.
What is the model number of the High Voltage Ceramic Capacitor?
The model number is CT8-2.
Where is the High Voltage Ceramic Capacitor manufactured?
The High Voltage Ceramic Capacitor is manufactured in XIAN, CHINA.
What certifications does the High Voltage Ceramic Capacitor have?
The High Voltage Ceramic Capacitor has ISO9001, ISO14001, ISO45001, CCC certifications.
What is the minimum order quantity for the High Voltage Ceramic Capacitor?
The minimum order quantity is 1 unit.
